Variable Strut Mounts
Documents
Documents
-
Description
Features:
-Tightly secure two or four 3″ round struts against a vertical surface with these heavy-duty brackets

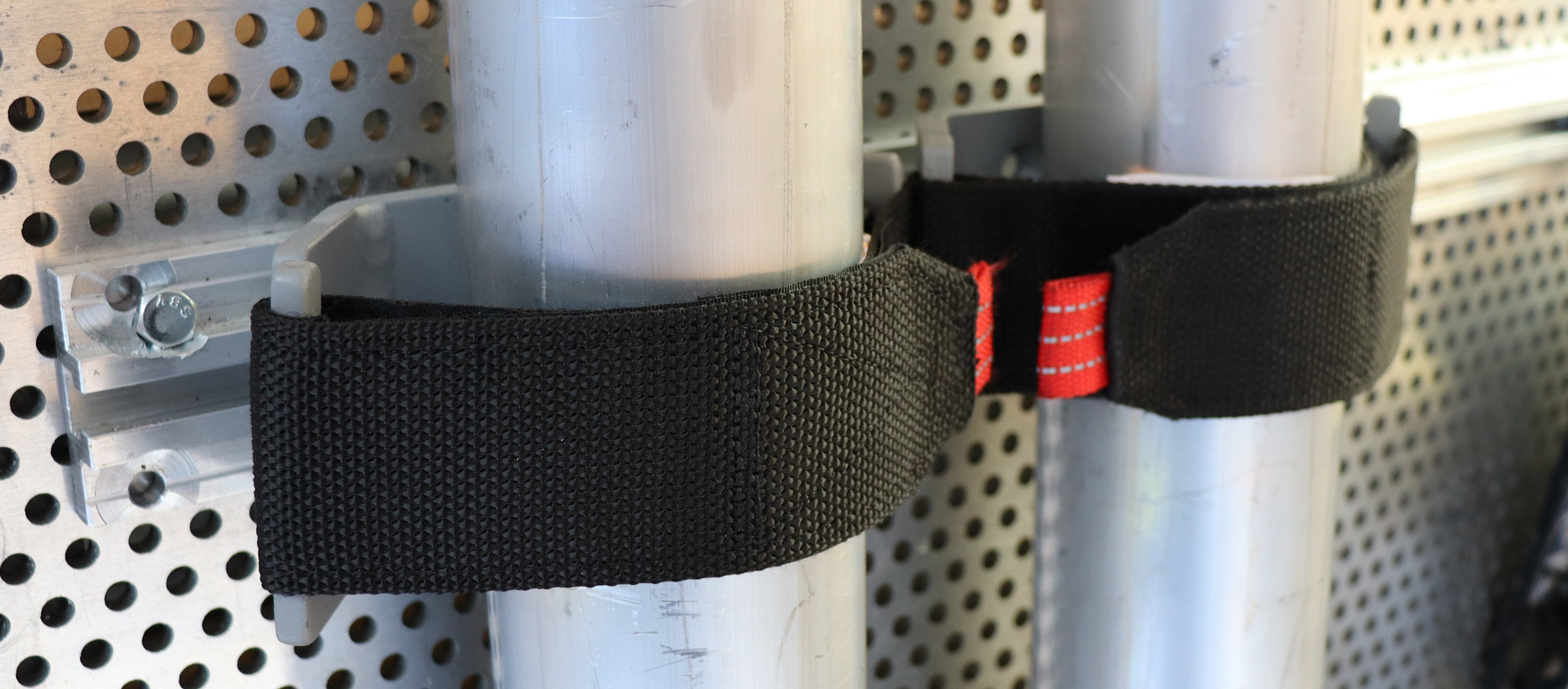

-Struts rest in holes of the lower bracket, then strap firmly into the adjustable upper bracket
– Beefy, 2″ wide nylon straps provide more surface area for an extraordinarily powerful grip
– SURE-GRIP technology allows for more leverage when securing for a stronger, tighter hold

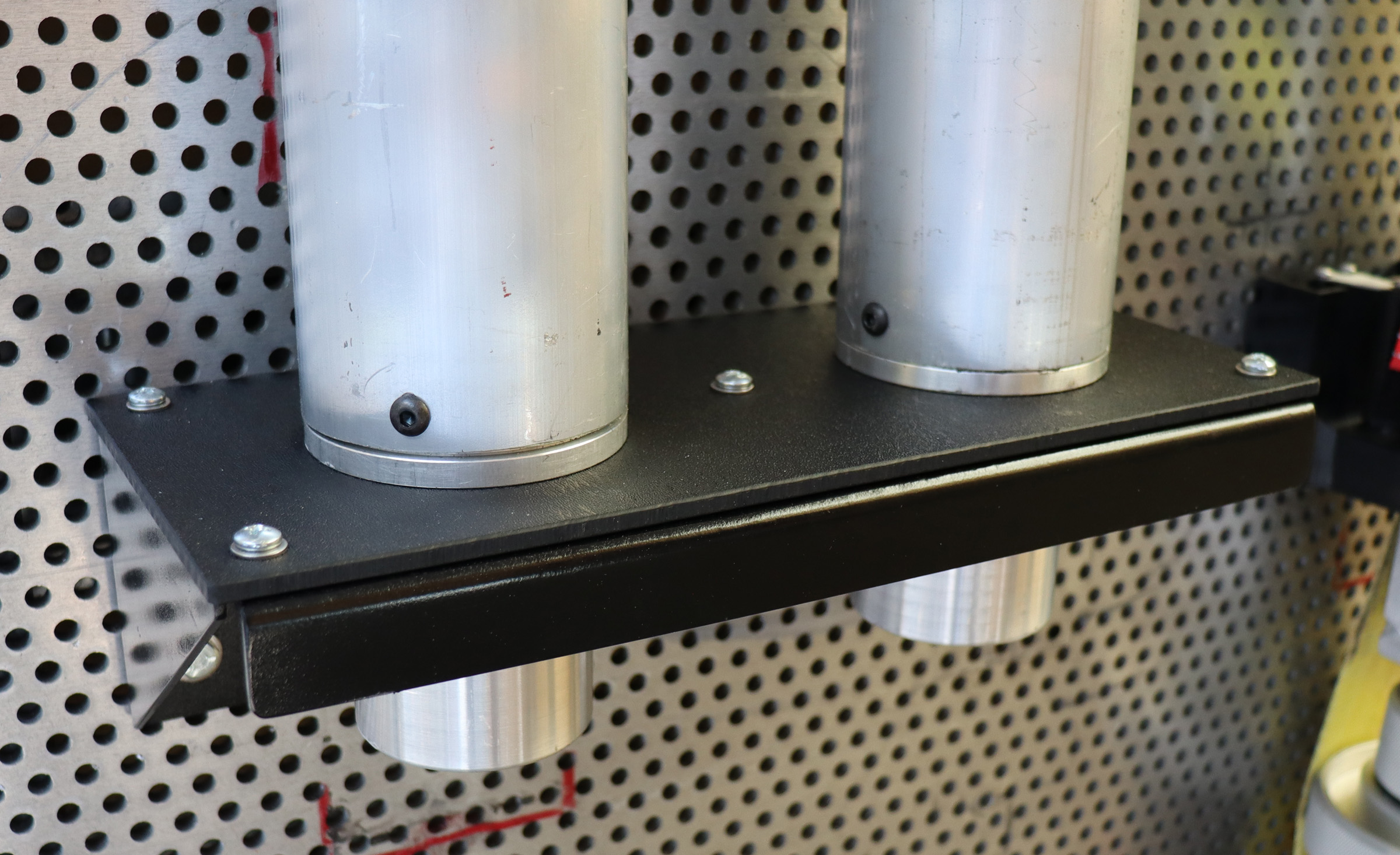

-Lower bracket is specially-designed to support the substantial weight and withstand the repeated abuse of stowage and removal
– Includes Unistrut channel for quick and easy mounting
Specs:
– Upper brackets are durable, powder-coated cast aluminum
– Lower bracket is durable, powder-coated steel with an extra layer of high-density polyethylene plastic
– Straps are all-weather, UV-resistant nylon with hook & loop pads
Models Available:

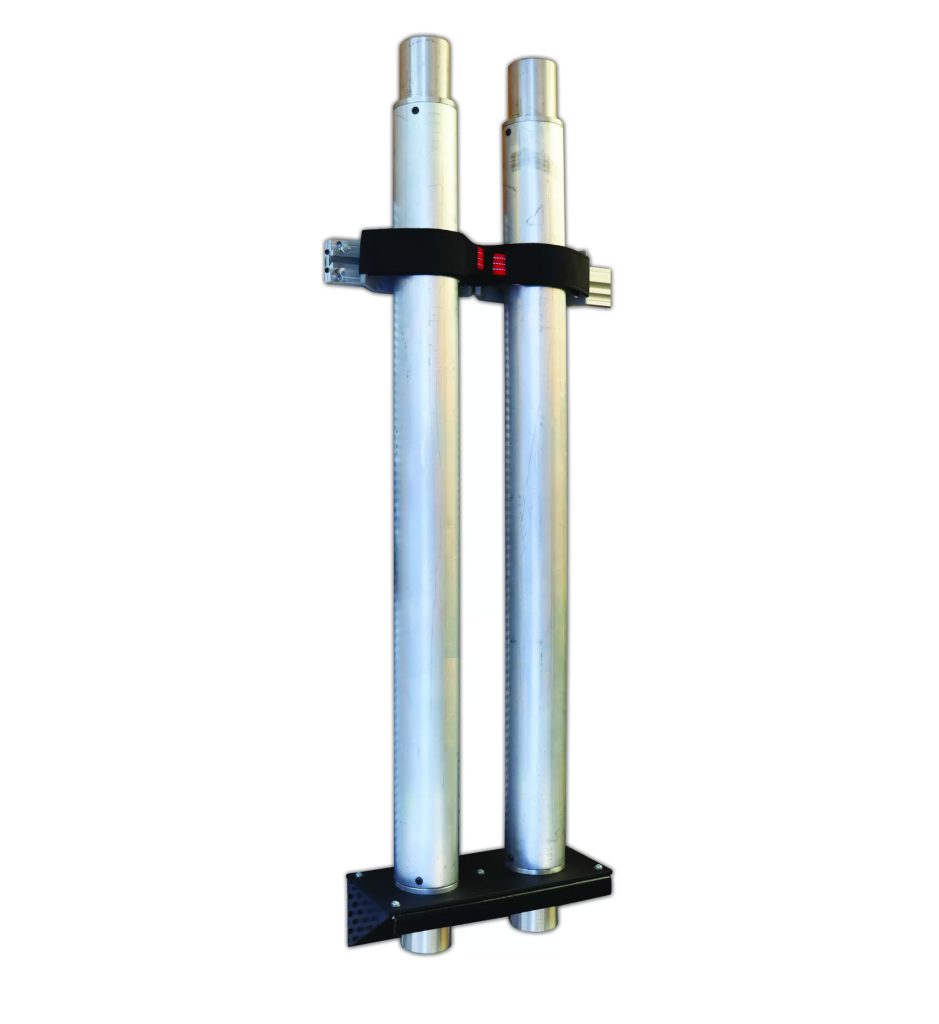

Double 3″ Strut Bracket: Model VM-3RS-D

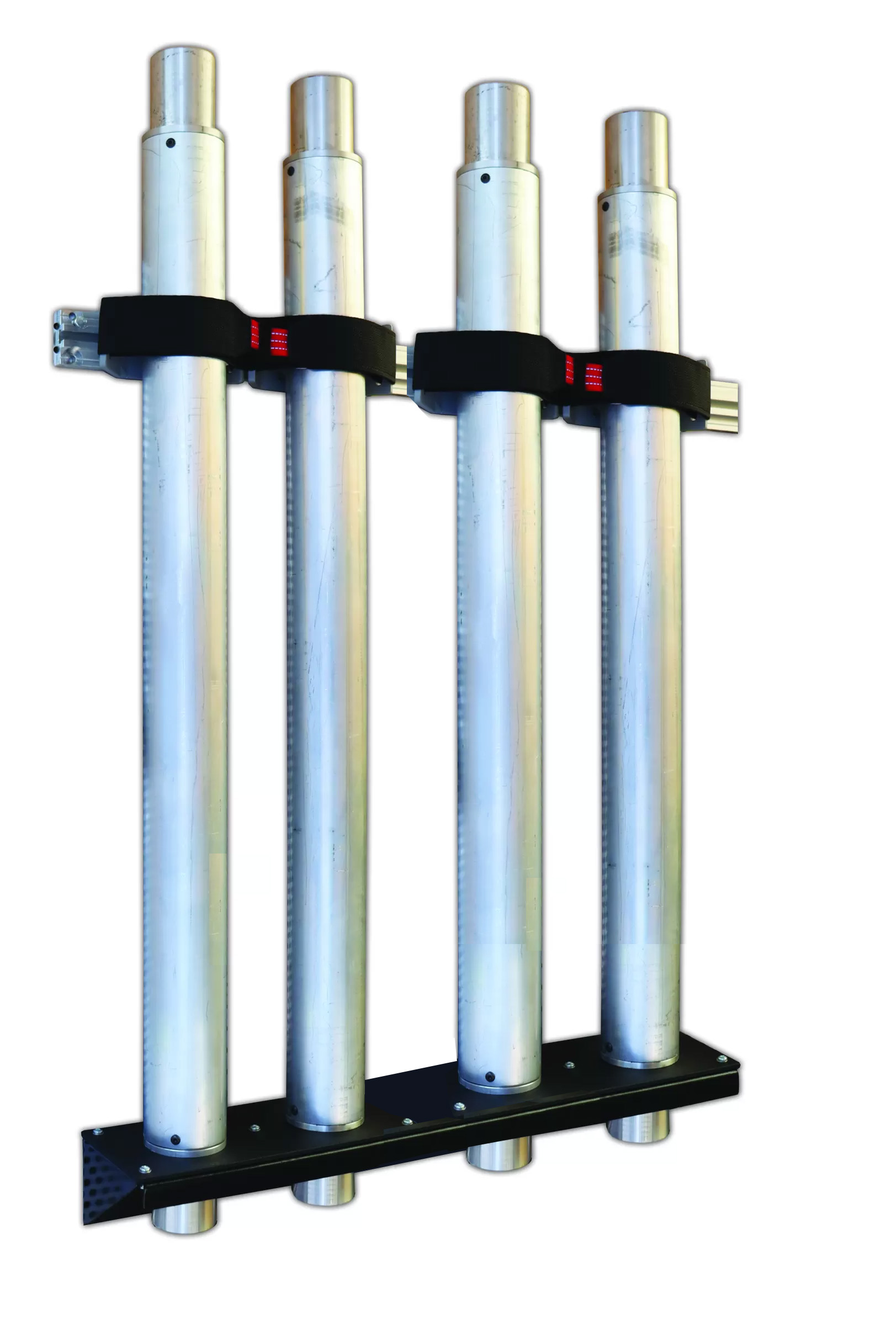

Quadruple 3″ Strut Bracket: Model VM-3RS-Q
Note: Upper brackets are also available standalone for the secure storage of square struts, large tools and other equipment. See Models VM-EH-D & VM-EH-Q.
-
