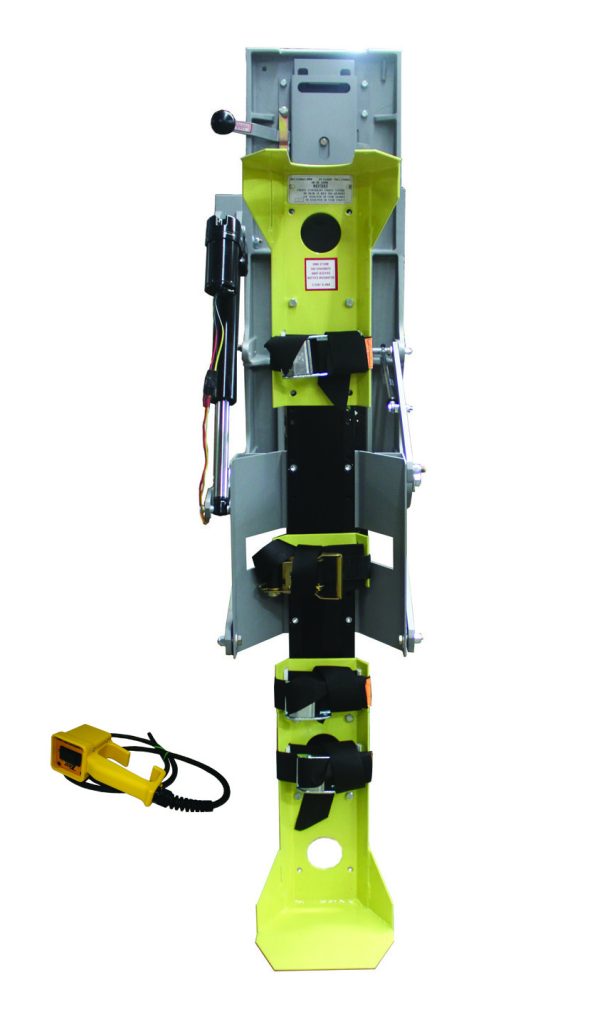

Oxygen Tank System – Motor on Left with Hand-held Switch

Description

Lifts and lowers an apparatus-mounted gas cylinder for quick and easy replacement, substantially reducing risk of injury to personnel.

System is powered by a single electric actuator with a maximum lifting weight of 205 lb. This actuator meets the UL-1500 standard for ignition protection, requires a 12 VDC with 30 amp circuit, and is operated via an included hand-held switch (located on same side as motor). The actuator is backdriving, preventing an extended system from holding the full weight of the apparatus if air suspension is lowered.

A locking safety latch secures the system when not in use.

Systems come equipped with appropriate cylinder bracket, two standard straps, two ratcheting straps, and a hand-held switch.

Complies with SAE-J3043, AMD Standard 003 for oxygen tank retention systems, and GSA KKK specification when used as recommended. Complies with OSHA and insurance safety regulations.
