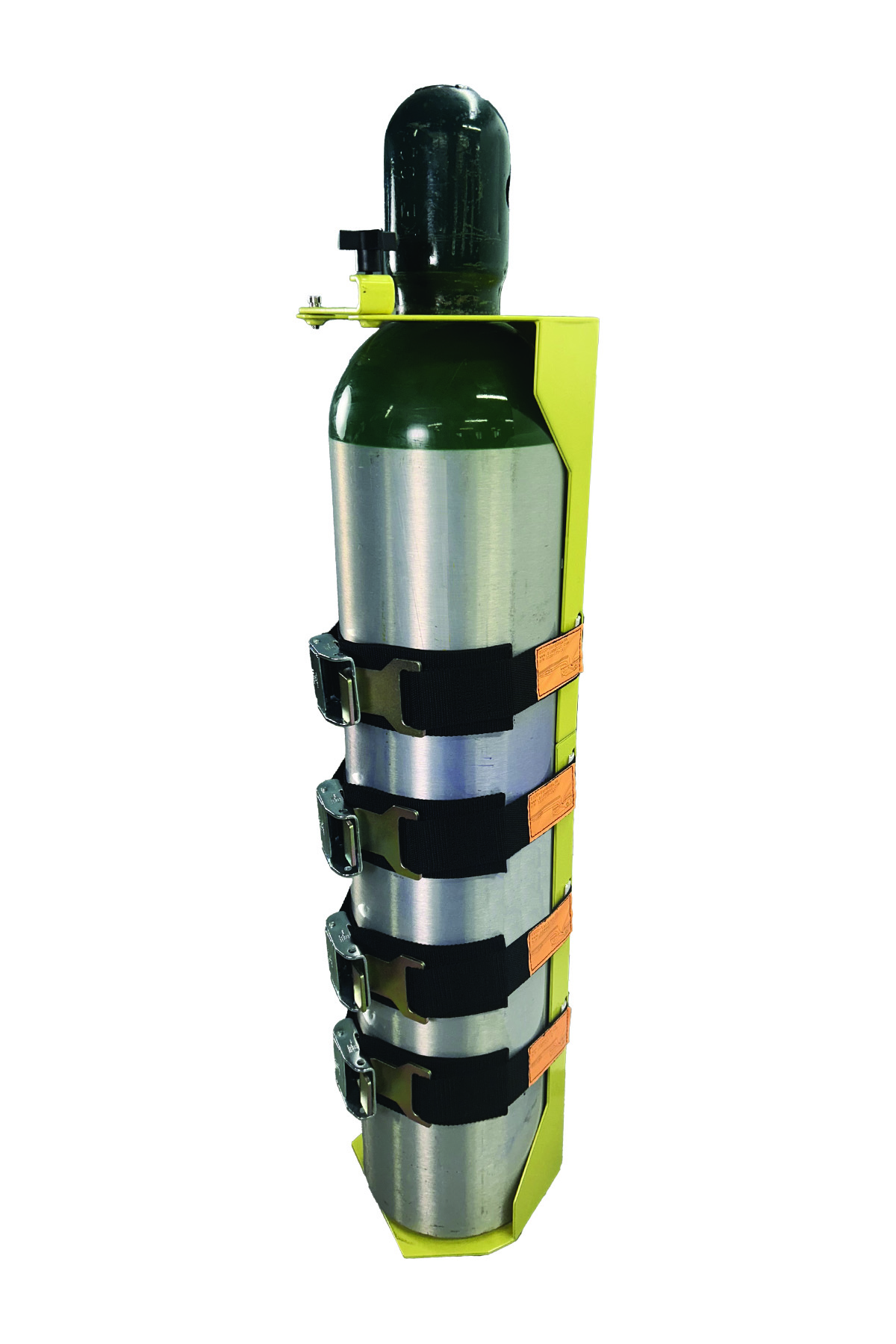

Multiversal Bracket with Hook Straps and Quick Release Gate
Your work is hard enough. Why not make things a little easier? Ziamatic’s new Patent Pending Multiversal Bracket with Hook Strap and Quick Release Gate is easy to use with a new hook and cam buckle combination.
-
Description

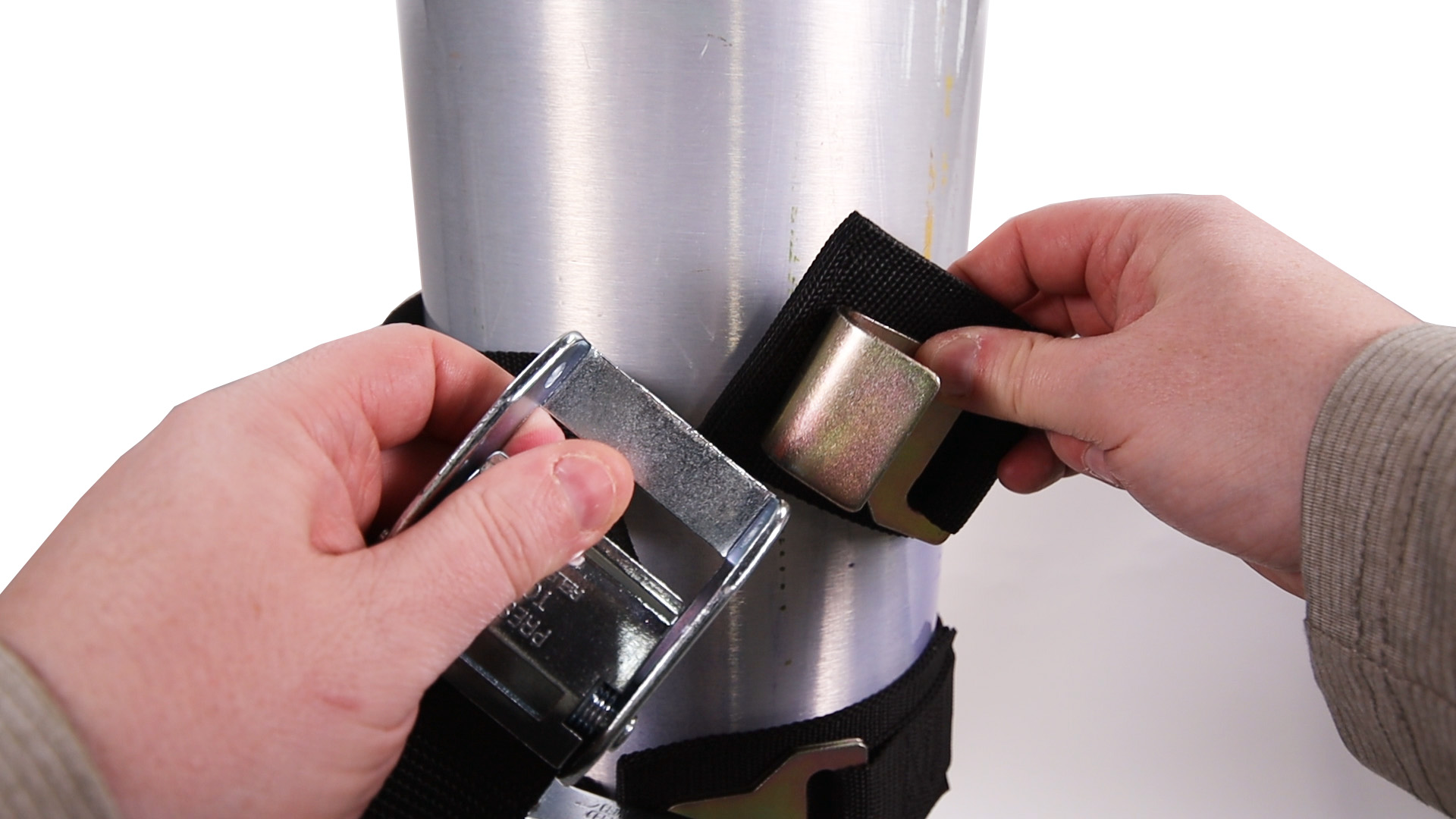

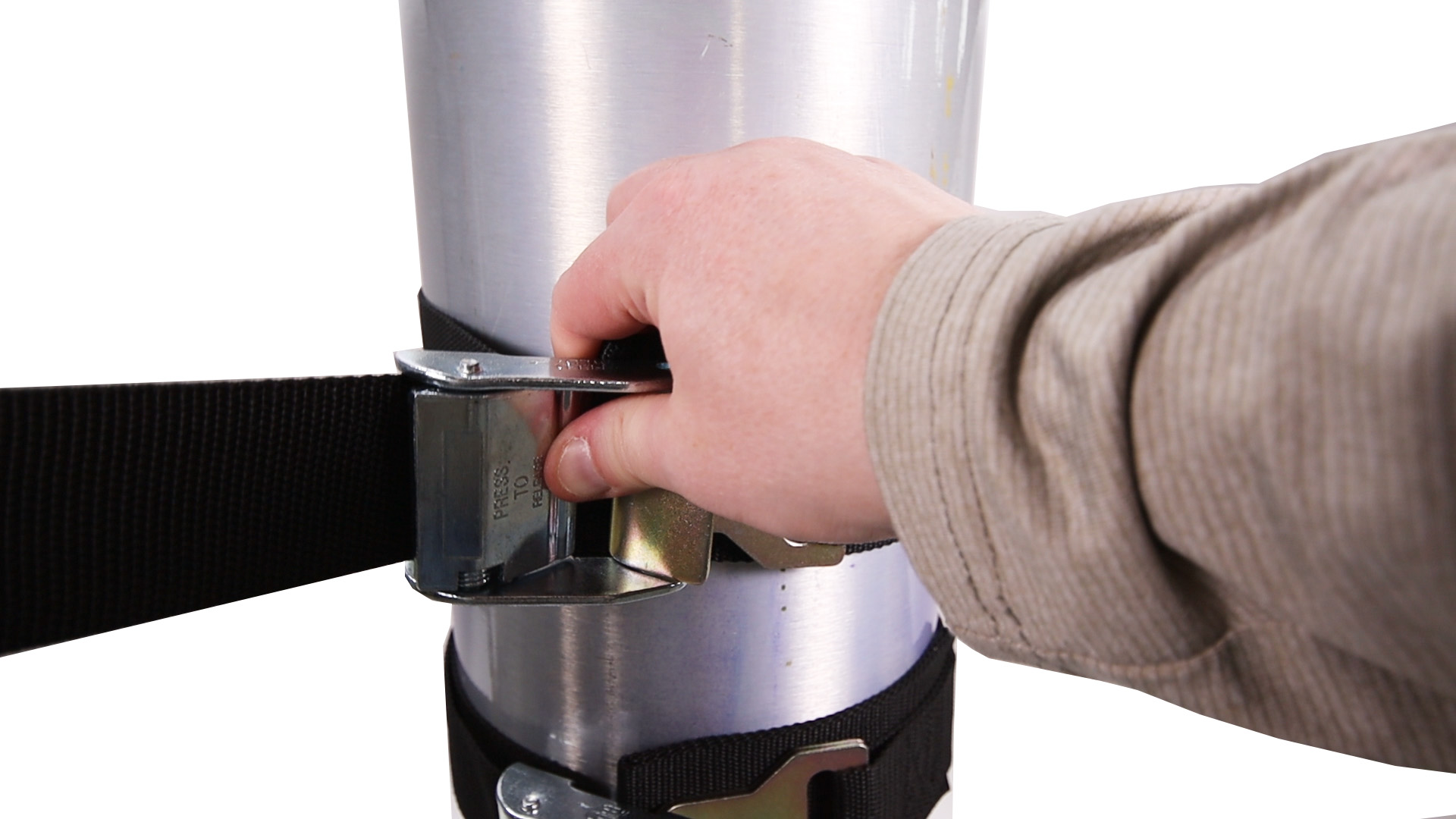

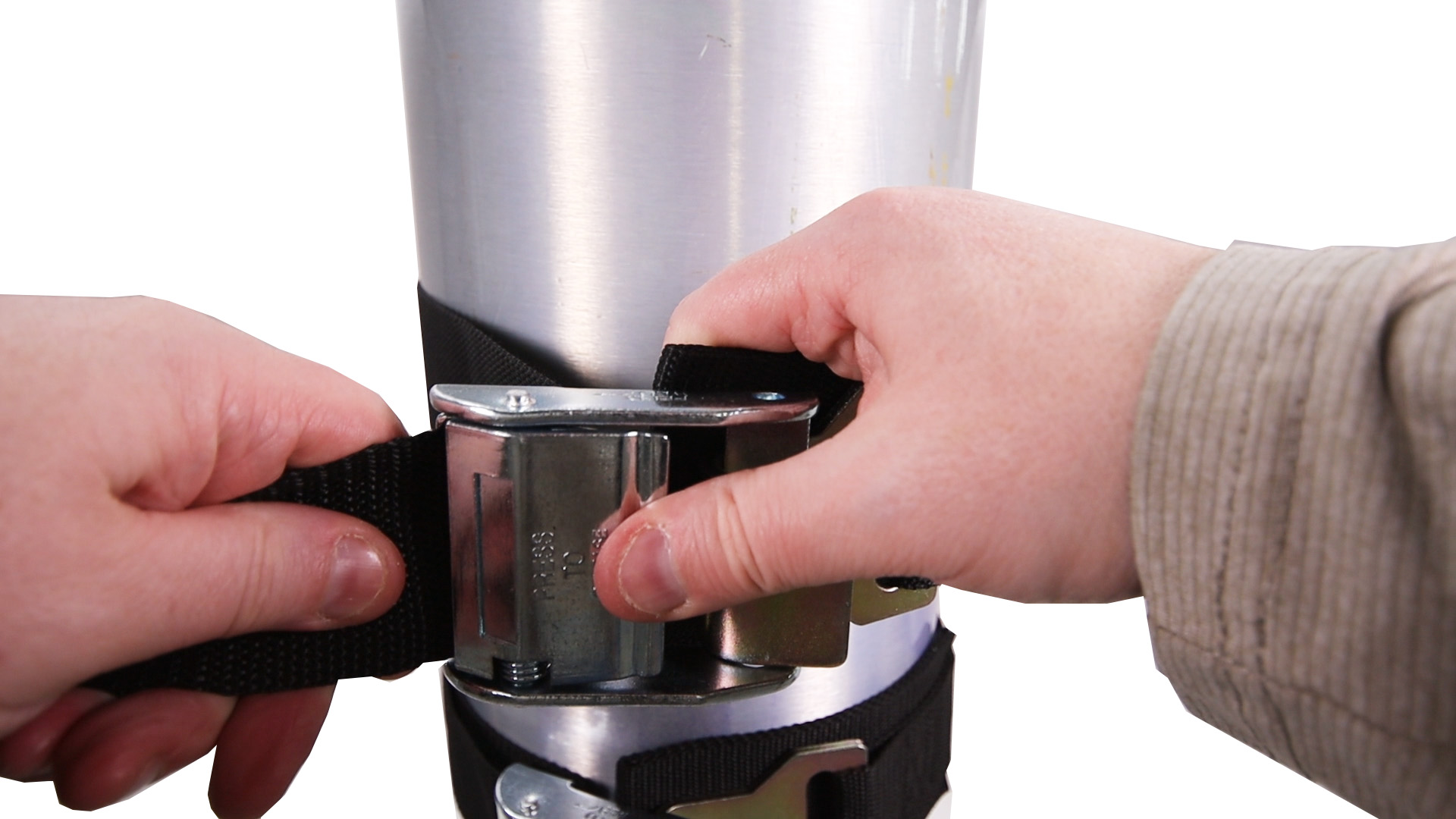

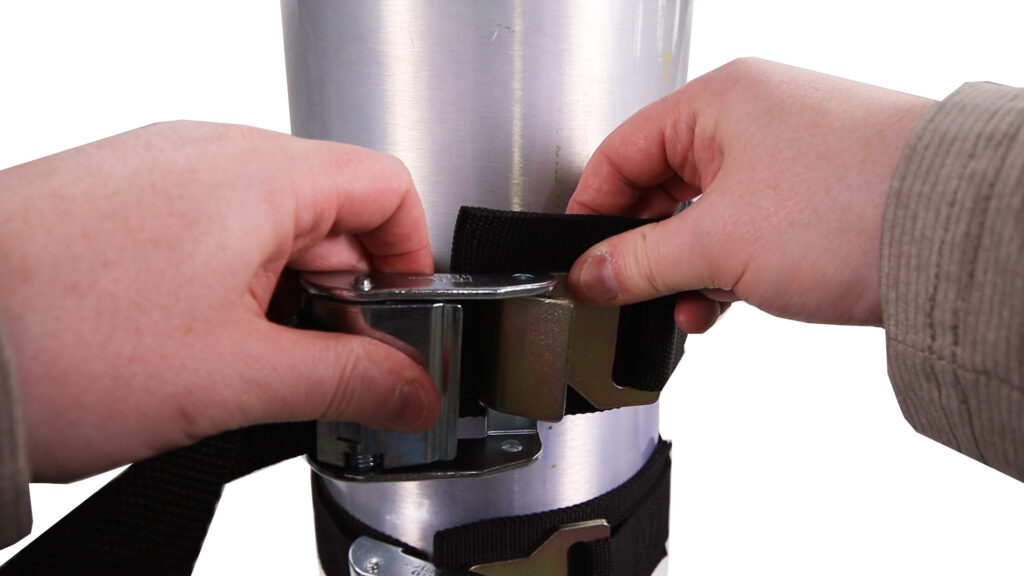

Your work is hard enough. Why not make things a little easier? Ziamatic’s new Patent Pending Multiversal Bracket with Hook Strap and Quick Release Gate is easy to use with a new hook and cam buckle combination. Simply press on the cam buckle to loosen or tighten the heavy duty 2- inch strap. When properly tightened, the hooks, buckles and straps hold a cylinder snugly in place.

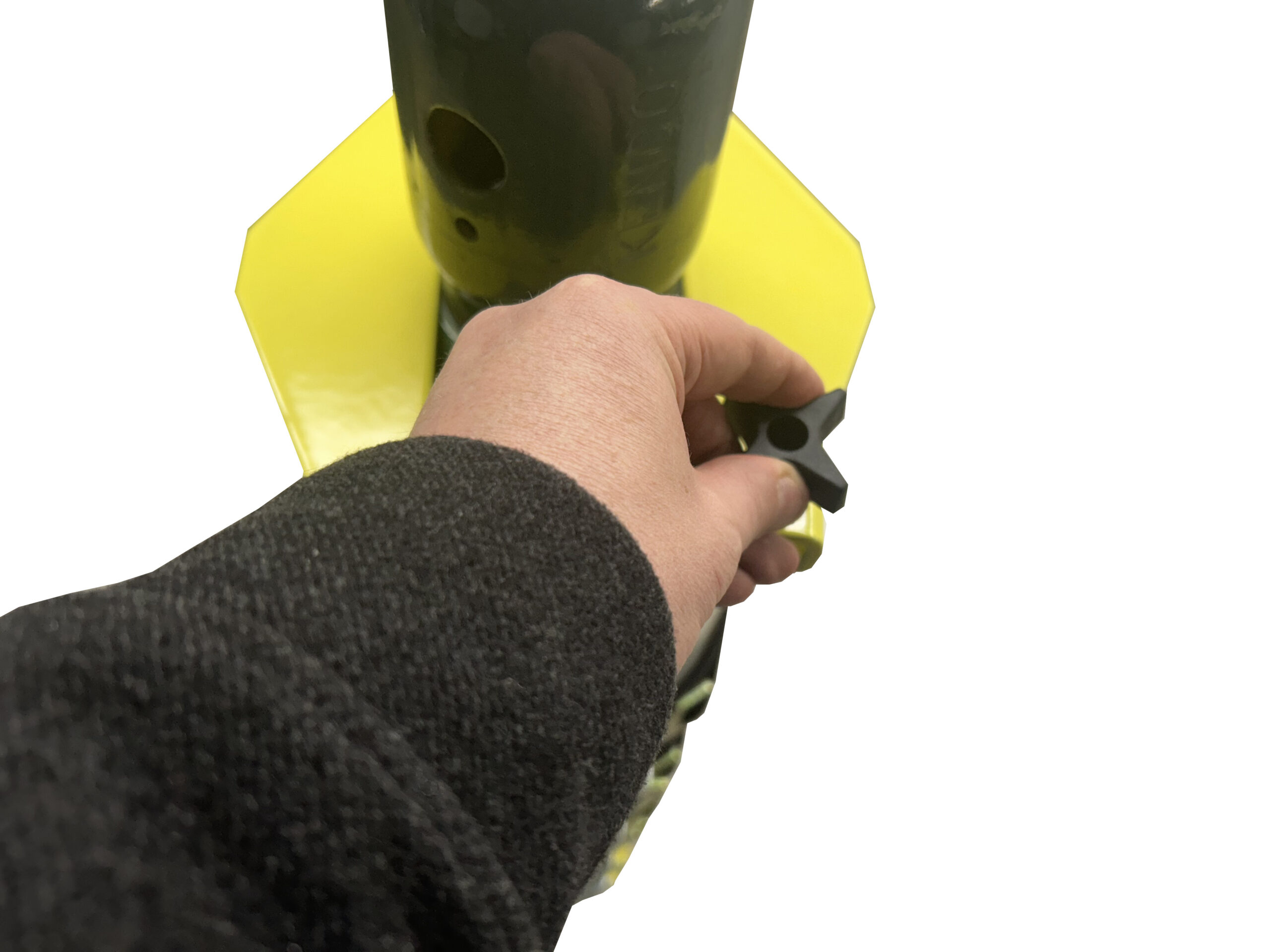

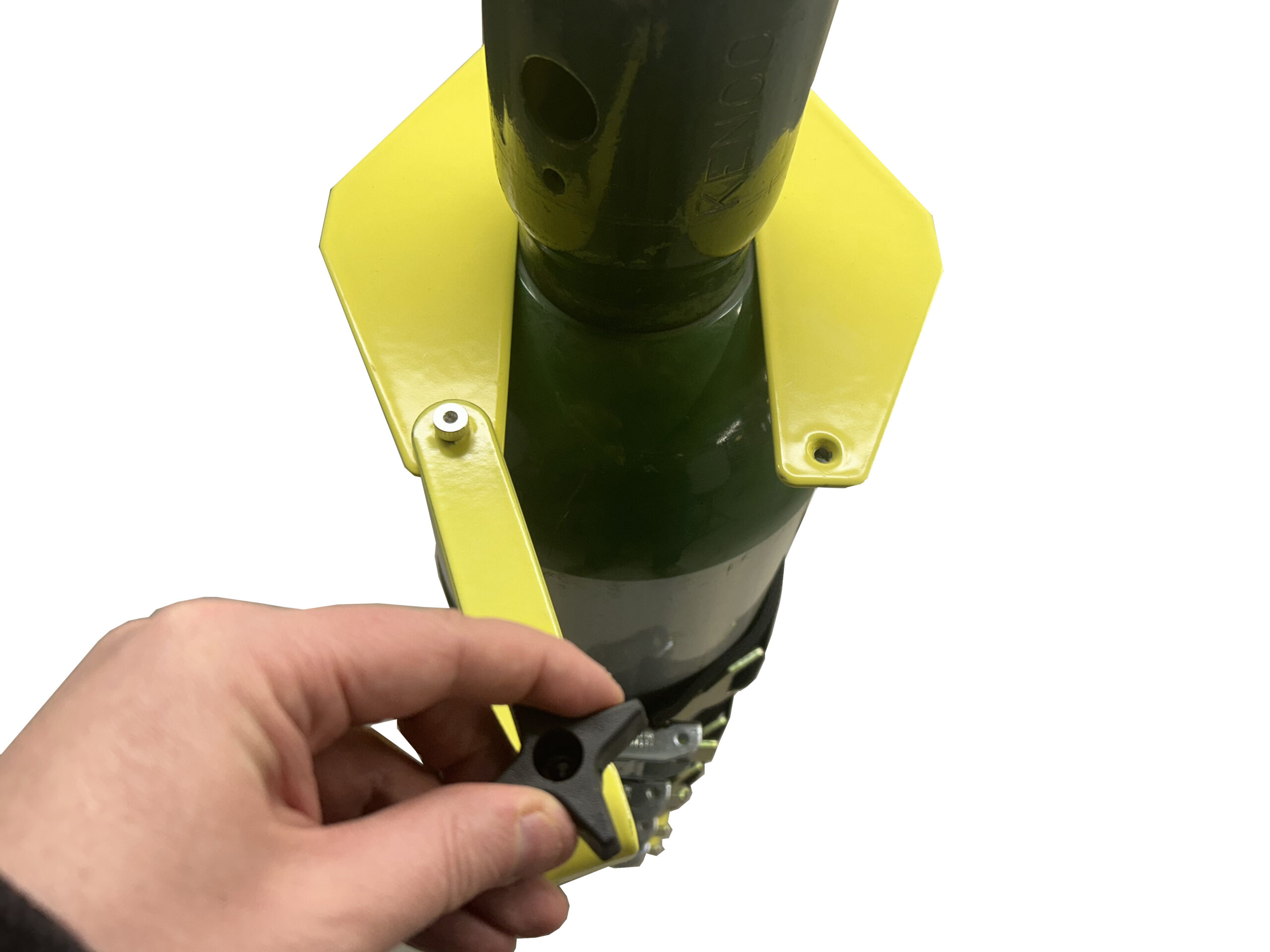

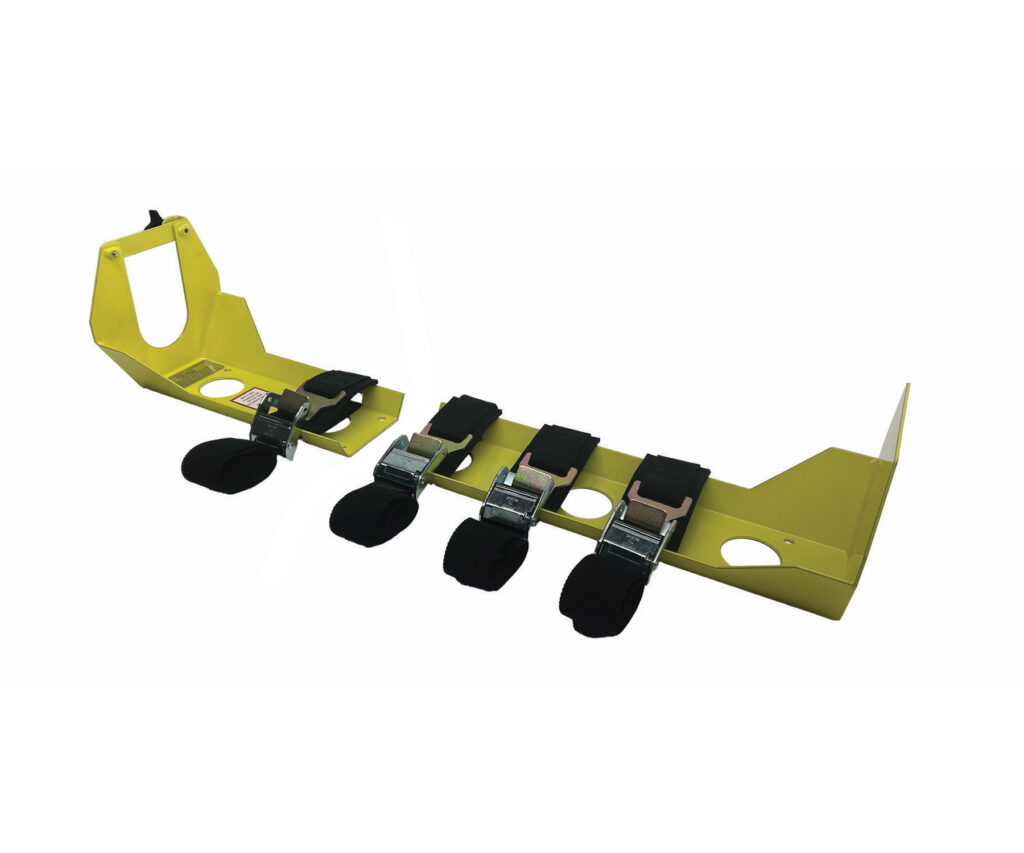

The bracket consists of only two separate ends (a base and retainer). The base and retainer ends can be spaced apart to accommodate “M”, “G”, “H”and “J” cylinders. The bracket features a new, ambidextrous, quick release gate that remains secured and attached from two ¼” 20 weld nuts and held tight by a durable hand knob. Swing closed, and tighten to secure.
4 Hook Straps (with cam buckle) – Part #3030-135-147 – are included.
Straps adjust to cylinder diameters of 6-3/4″ to 9-1/4″
Base Dimensions: 21” L x 9” W x 8” D
Retainer Dimensions: 14-3/8″ L x 9″ W x 8” D
Straps (4) : 2”x 40”
J Hooks (4): 3 1/8” L
Cam buckles (4): 3” LComplies with SAE-J3043, AMD Standard 003 for oxygen tank retention systems, and GSA KKK specification when used as recommended. Complies with OSHA and insurance safety regulations.
-
