Double Hard Sleeve Gantry – (for two – 10-foot hard sleeves or two – 12-foot hard sleeves)
Documents
Documents
The new Double Hard Sleeve Gantry may be the safest, most efficient way to retrieve two 10-foot hard sleeves from the top of a fire truck. The new Double Hard Sleeve Gantry makes a multi-person operation a one-person operation. It can be a very helpful product for those departments that have only a few firefighters responding to calls.
-
Description
The new Double Hard Sleeve Gantry may be the safest, most efficient way to retrieve two 10-foot hard sleeves or two 12-foot hard sleeves from the top of a fire truck. The new Double Hard Sleeve Gantry makes a multi-person operation a one-person operation. It can be a very helpful product for those departments that have only a few firefighters responding to calls.
The Double Hard Sleeve Gantry is designed around the standard areas where double hard sleeve stationary mounts are commonly seen, making this system a good choice for retrofitting or specking in to new truck bids. A damper was applied to create a steady, safe, but efficient drop down with little to no resistance when lifting up and storing the gantry. The handle and locking assembly are designed with a release close to the bottom of the handle so users do not need to leave the ground when retrieving hard sleeves.

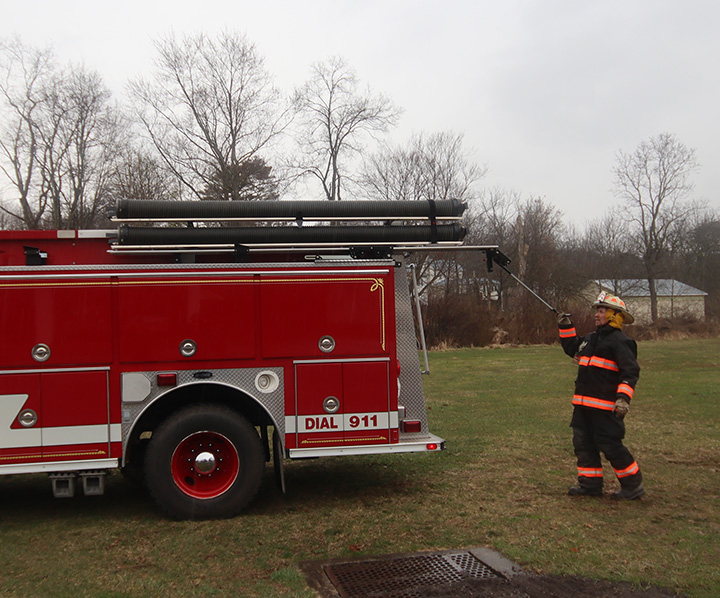

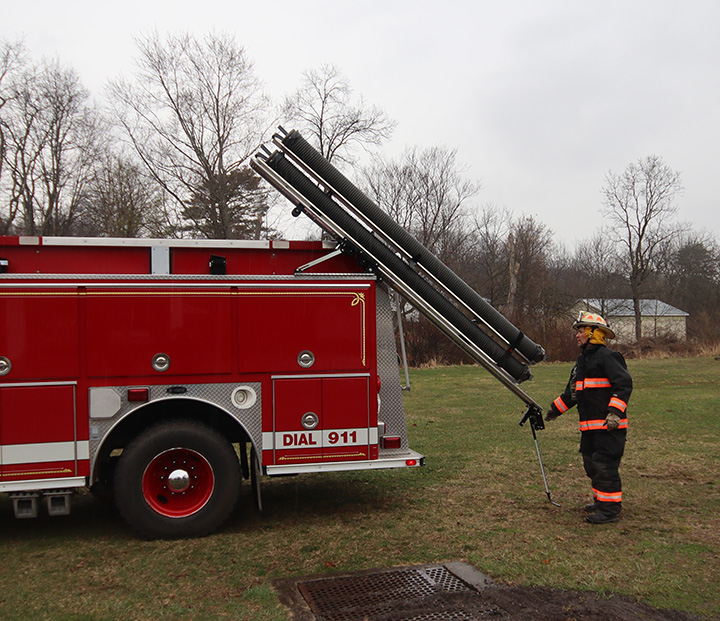

To operate, simply unlock and slide the gantry out and down to ground level access. Undo the hook and loop strap and slide the hard sleeve from the trays. The handle and locking assembly are designed to automatically lock when the gantry is put back into the stowed position.
MODELS:
– HSG-2-O-10 (Officer’s side of vehicle) HSG-2-D-10 (Driver’s side of vehicle) – for 10-foot hard sleeves
– HSG-2-O-12 (Officer’s side of vehicle) HSG-2-D-12 (Driver’s side of vehicle) – for 12-foot hard sleeves -
